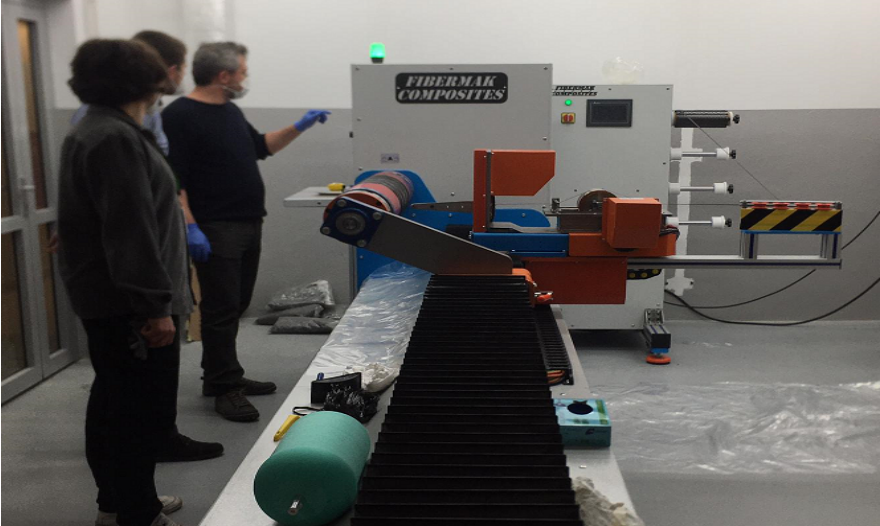

2-axis CNC Filament Winding Machine

2-axis servo motor controlled
CNC control panel
Computer-controlled CNC system (including computer and licensed CNC software, Mach3 CNC software)
Mandrel drive system with servo motor and gearbox
Maximum mandrel rotation speed: 150 rpm
Three-jaw chuck system for mandrel clamping
Adjustable slide system for mandrel range between 500 mm - 1200 mm
Linear guide and ball screw system for axis movements
Maximum winding length of the part: 1200 mm
Maximum winding diameter of the part: 250 mm
Dip-type resin bath
Mechanical clamping tension system for 4 fiber bobbins
Approximate weight: 350 kg
