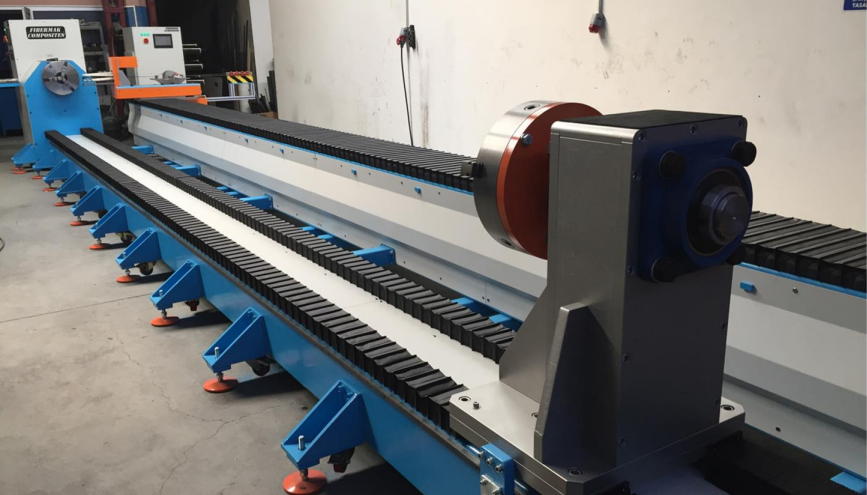

4-axis CNC Filament Winding Machine

4-axis servo motor controlled device
CNC control panel
4-axis Delta CNC system
Mandrel drive axis (A axis) and winding head axis (B axis) powered by servo motors with gearboxes
Maximum mandrel rotation speed: 150 rpm
Three-jaw chuck system for mandrel clamping
Adjustable slide system for mandrel range between 500 mm - 2000 mm
Linear guide and ball screw system for X and Y axis movements
Maximum net winding length of the part: 2000 mm
Maximum winding diameter of the part: 450 mm
Maximum mandrel weight capacity: 150 kg

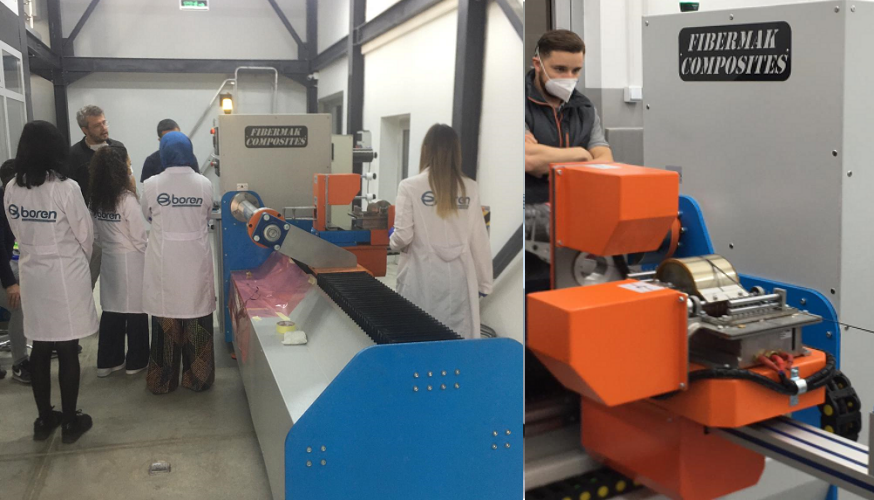

Roller-type resin bath
Servo motor-tensioned connection system for 4 fiber bobbins
Approximate weight: 500 kg
