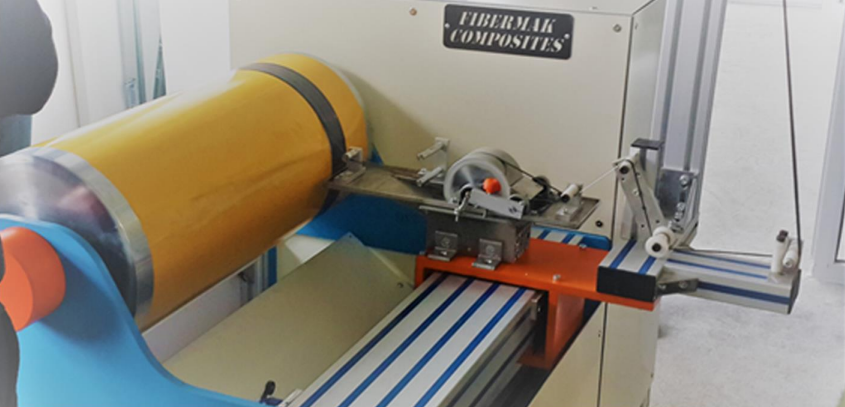

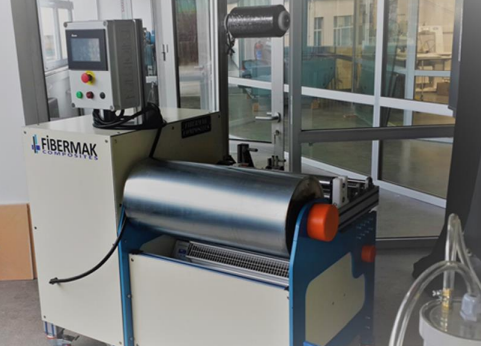

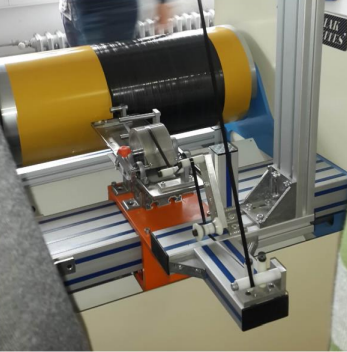

Drum-Type Prepreg Winding Machine

500 mm x 960 mm unidirectional carbon fiber prepreg production
2000 cm³ resin bath
Winding roller diameter: 300 mm
Fiber winding speed: 20 rpm
Heating power: 2000-watt ceramic heater
Servo motor drive system
PLC control system
PLC control panel
Temperature control panel
Length: 1220 mm, Width: 1280 mm, Height: 1500 mm
Approximate weight: 250 kg
